Description

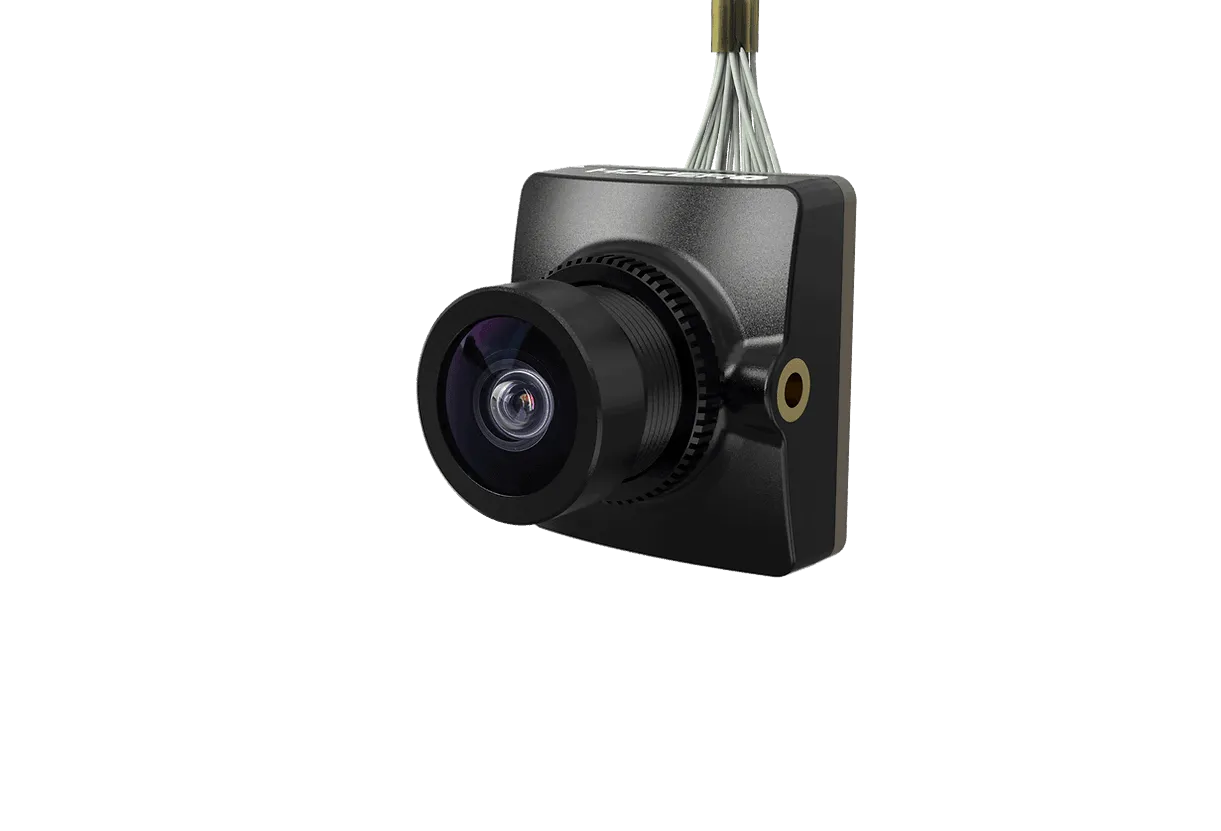

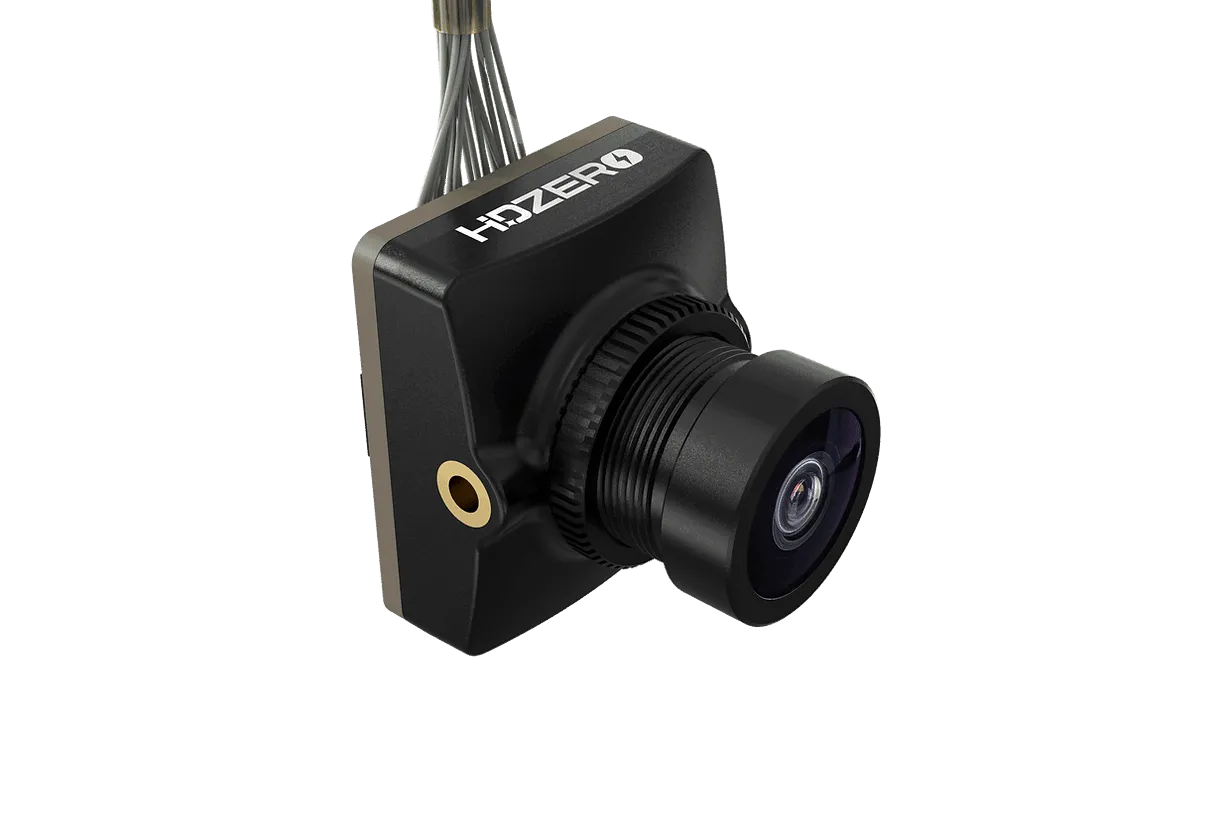

Runcam Nano V3 HDZero camera is small and lightweight, making it ideal for whoops and micro drones. A sharp lens with very wide FOV offers the best nano camera image quality for HDZero yet.
The camera is optimized for 4:3 aspect ratio but can be configured for 16:9 aspect ratio within the camera’s settings menu. With its large FOV lens, 16:9 cut mode offers a comfortable amount of FOV and 16:9 full mode offers a very large FOV, but with vignetting.
Nano v3 is to replace Nano v2 and Nano lite camera.
Compared to Nano v2, Nano v3 offers:
Larger FOV (94° vs 89°)
Sharper optic
Reduced weight (half as heavy)
Compared to Nano lite, Nano v3 offers:
Larger FOV (94° vs 84°)
Sharper optic
Much clearer colors and contrast
Marginal weight increase (0.7g)
Specifications
| Manufacturer: | RunCam |
| Model: | Nano V3 HDZero |
| Sensor Size: | 1/2 inch |
| Resolution: | 720@60fps 4:3 |
| Sensitivity: | 10650mV/Lux-sec |
| Shutter: | Rolling Shutter |
| FOV: | FOV D:155° H:126° V:94° |
| Input Power: | 3.3V |
| Power Consumption: | 0.5W |
| Weight: | 2.2 g |
| Dimensions: | L14mm*W16mm*H14mm |
Includes
Nano V3 HDZero camera*1

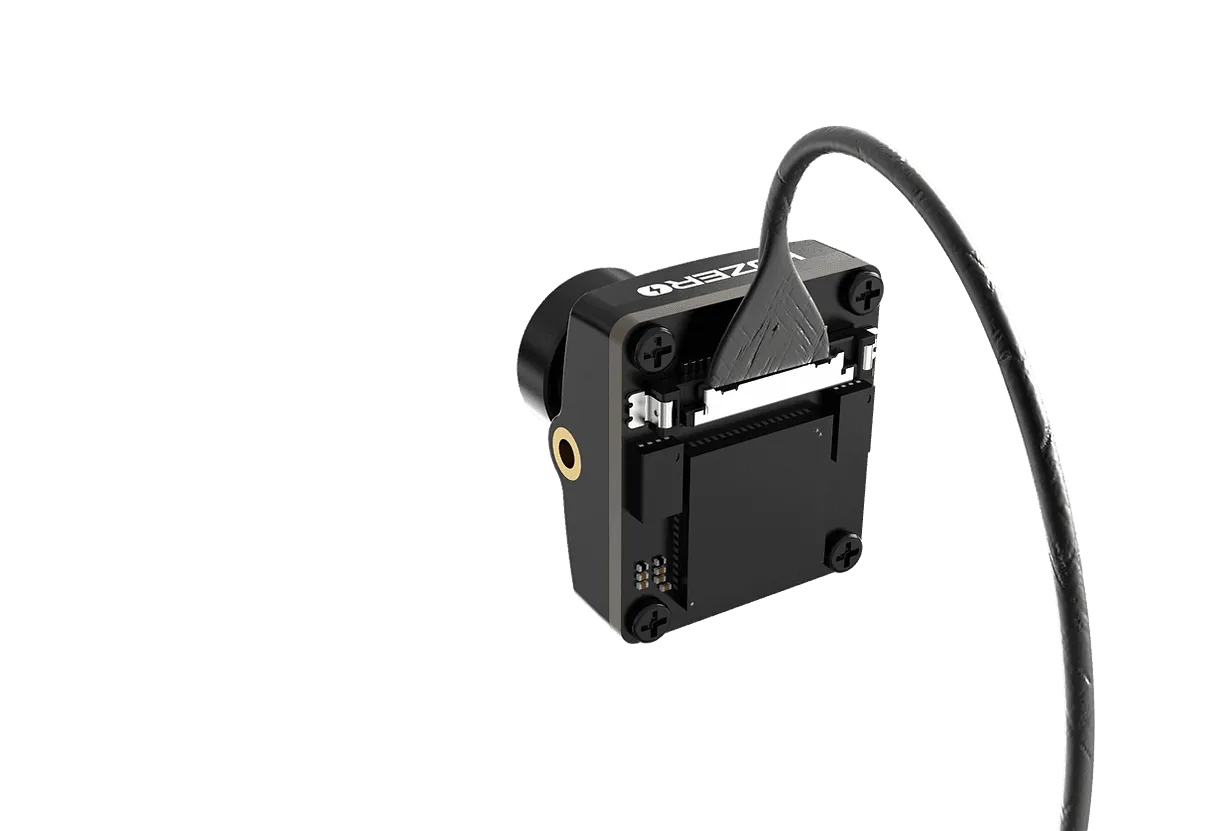

MIPI cable Not included.
