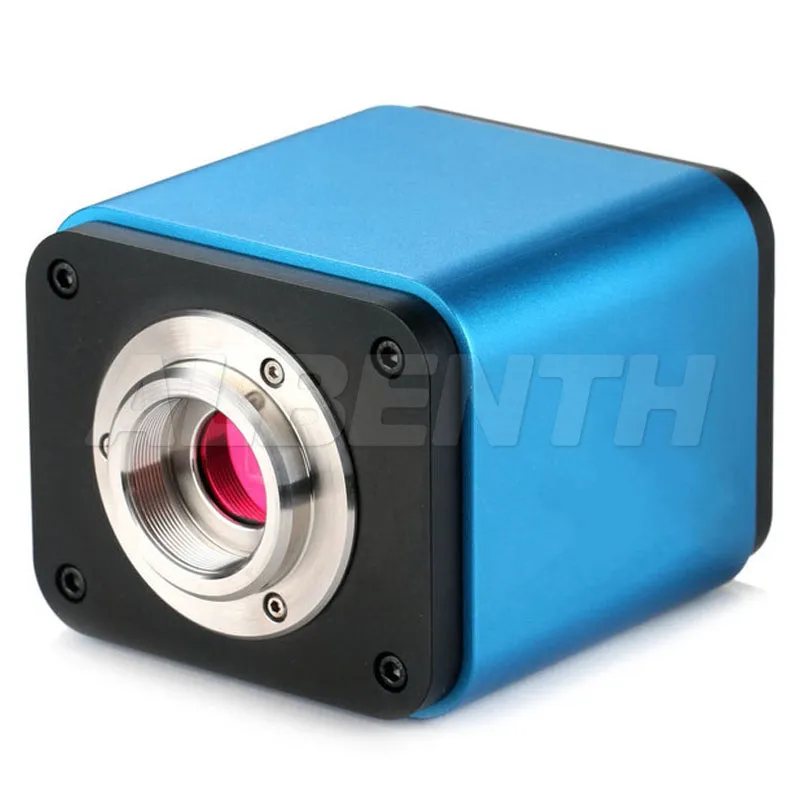

RT80F-5MA adds auto-focus capabilities to our popular line of HD microscope cameras. RT80F-5MA offers 1080p live-viewing over HDMI, and can record photos and video directly to Secure Digital media. The internal software provides control over exposure and color, and tools for measurements and comparisons. The addition of auto-focus limits the need to make focus-adjustments when using the camera as the primary means of observation.
Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 30fps. The included USB mouse allows you to control the camera through its easy-to-use interface. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
The camera uses a C-mount interface, making it compatible with a wide range of reduction lenses and photo-ports. Notice: because of the auto-focus mechanism, C-mount lens threads should not exceed 5mm.

● 5MP / 1080p 30fps HDMI digital microscope camera with C-mount
● Tandalone operation with built-in recording using SD card
● WiFi connectivity for PC control and capture up at 25fps
● User-friendly software for Windows XP/Vista/7/8/10 offers editing/processing and advanced features including Stitching and Focus-stacking

Product information
● Sensor Size(mm): 1080P/5M/Sony IMX178(C) 1/1.8"(6.22x4.67)
● Pixel(μm): 2.4x2.4
● G Sensitivity, Dark Signal:
- 425 mv with 1/30s
- 0.15 mv with 1/30s
● FPS/Resolution:
- 30@1920x1080 (HDMI)
- 25@1920x1080 (WiFi)
● Binning: 1x1
● Exposure: 0.03ms~918ms

Interface & Button Functions
● USB: USB Camera or USB Mouse
● HDMI: HDMI Output
● DC12V: 12V Power in
● SD: SD Card Slot
● LED: Power On Indicaator
● ON/OFF: Power On/Off Switch

Other Specification for HDMI Output
●UI Operation: With USB Mouse
●Image Capture: JPEG Format with 2M Resolution in SD Card(XFCAM1080PHD)
●Video Record: ASF Format 1080P 60fps in SD Card
●Camera Control Panel: Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
●Auto-focus Control Panel: Including Auto-focus, Manual Focus, One Push AF and Conjugate Correction Functions
●Toolbar: Including Zoom, Mirror, Comparison, Freeze, Cross, WDR, Auto-focus, Browser Function, Setting, Muti-language and XCamView Version Information

Other Specification for WIFI Output
● UI Operation: With USB Mouse to Operate on the embedded XCamView
● WIFI Performance: 802.11n 150Mbps; RF Power 20dBm(Maximum)
● Maximum Connected Devices: 3~6 (According to the Environment and Connection Distance)
● White Balance: Auto White Balance
● Color Technique: Ultra-Fine Color Engine (WiFi)
● Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C , C#/VB.NET, Python, Java, DirectShow, Twain, etc) (WiFi)
● Recording System: Still Picture or Movie (WIFI)

Software Environment (for USB2.0 Connection)
● Operating System:
- Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)
- OSx (Mac OS X)
- Linux
● PC Requirements:
- CPU: Equal to Intel Core2 2.8GHz or Higher
- Memory: 4GB or More
- USB Port: USB2.0 High-speed Port
- Display: 19" or Larger
- CD-ROM

Operating Environment
● Operating Temperature: -10℃~ 50℃
● Storage Temperature: -20℃~ 60℃
● Operating Humidity: 30~80%RH
● Storage Humidity: 10~60%RH
● Power Supply: DC 5V over PC USB Port

Packing List:
1x RT80F-5MA Microscope Camera
1x USB Mouse
1x HDMI Cable
1x USB Power Cable
1x DC Adapter
